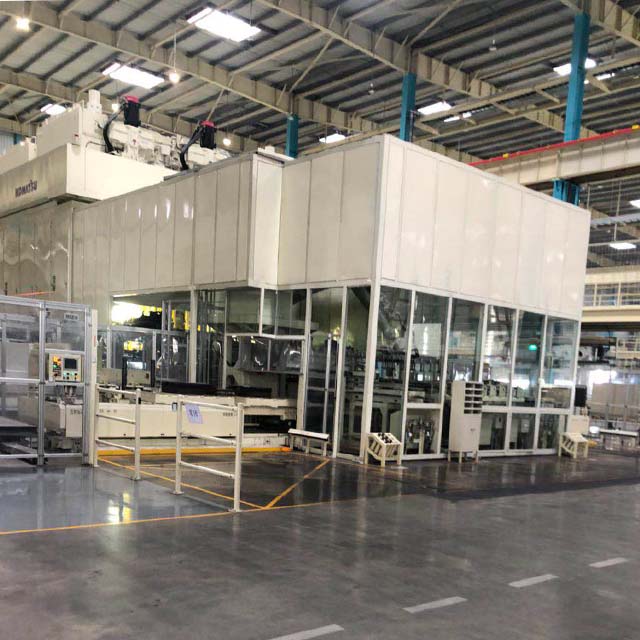

With the improvement of industrial production efficiency, punching equipment is widely used due to its high precision and high speed, but it also brings significant noise pollution problems. In order to solve this problem and protect the working environment of operators and the quality of life of surrounding residents, it is particularly important to design and build efficient, durable and acoustically compliant punching soundproof rooms. The following will introduce in detail how to design a punching soundproof room.

1. Preliminary planning and demand analysis
Noise assessment: First, it is necessary to measure the noise level generated by the operation of the punching machine, determine the noise reduction target value, and formulate a design plan in combination with national or local environmental protection regulations and workshop internal noise control requirements.

Spatial layout: According to the size of the punching machine equipment, the feeding and discharging method, and the requirements of the maintenance channel, the spatial location and structural size of the soundproof room are reasonably arranged to ensure the convenience of daily production operations.

2. Structural design and material selection
Wall structure:

The exterior wall usually uses high-quality cold-rolled steel plates with a thickness of at least 1.5mm to ensure sufficient rigidity and durability.

The interior wall uses galvanized mesh plates (thickness above 0.8mm) to enhance the wall strength while providing sound absorption effect.
The wall interlayer is filled with fireproof and environmentally friendly sound insulation cotton and flame-retardant glass mesh to absorb noise in different frequency bands and prevent sound propagation.
The specific plan needs to be designed according to different sound insulation requirements.

Door and window design:

Design soundproof doors and windows, use double or multi-layer hollow glass, and match with high-quality sealing strips to effectively prevent sound waves from penetrating.
Observation windows and inspection doors should be equipped with silencing channels and hanging sound insulation curtains to ensure that there is no obvious sound leakage at the inlet and outlet of materials.
Ventilation and heat dissipation system:

Considering that the punching machine will generate a lot of heat during operation, the soundproof room must be equipped with ventilation and heat dissipation devices, such as low-noise exhaust fans, air ducts and heat exchangers, and ensure that its own noise is low.
3. Sound absorption and sound insulation treatment
Sound absorption and sound insulation materials:

Install sound absorption and sound insulation materials on walls, ceilings and areas where noise may be reflected, such as sound absorption bricks, sound absorption sprays, composite sound absorption and sound insulation panels, etc., to ensure that the indoor reverberation time is properly controlled and the noise level is reduced.
Overall sound insulation performance:

The overall sound insulation of the soundproof room must reach at least 25dB, and the sound absorption part needs to have good sound absorption performance, which can effectively absorb most impact noise and mechanical vibration.

4. Modularity and maintainability

Modular design: Considering factors such as equipment maintenance and factory relocation, the soundproof room can adopt a modular structure design, making it easy to disassemble and replace components, and also adapt to changes in future production scale.

Anti-seismic performance: In view of the vibration characteristics of high-speed punch presses, the structure of the soundproof room must have good anti-seismic performance, such as using elastic vibration reduction elements at the connection between the base plate and the wall to reduce noise leakage caused by equipment vibration.

5. Safety and fire protection measures

Fireproof performance: All sound insulation materials used should have excellent fireproof performance and comply with relevant fire safety regulations.

Lighting and warning signs: Safety lighting facilities with sufficient brightness must be set up in the soundproof room, and warning signs and emergency exit instructions must be clearly marked on the outer surface.

In summary, the design of a high-quality punch soundproof room requires not only scientific and reasonable structural design and selected sound insulation materials, but also full consideration of the actual working conditions. Use requirements, equipment maintenance and safety requirements. Through the above-mentioned comprehensive design and construction, we finally created a soundproof room that can effectively suppress noise while taking practicality into consideration, effectively improving the working environment and protecting the health of employees.
